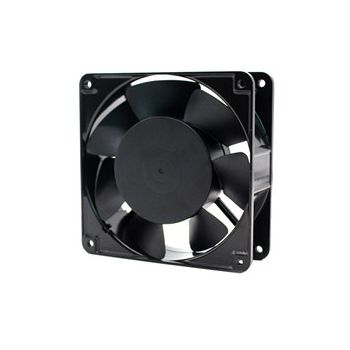

High quality 120*120*38MM-7 UPS Power Distribution Box Cooling Fan is offered by China manufacturers Huatai. Buy 120*120*38MM-7 UPS Power Distribution Box Cooling Fan which is of high quality directly with low price.
When the power supply works, a lot of heat will be generated. If the heat cannot be discharged in time, the temperature and temperature rise of the switching power supply will be reduced, which will affect its normal work, and the power supply will even be damaged.
Many industries use the switch power using the combination of cooling fan and natural cooling cooling, can both in the case of high ambient temperature, effectively reduce the rectifier internal working temperature, prolong the service life of devices, and in the case of low ambient temperature and low load, rectifier fan lower speed, prolong the service life of the fan. Using the radiator heat dissipation, its device spacing and creepage distance can be relatively far, in the case of high humidity, high safety performance. The rectifier is lighter and smaller, making maintenance work easier.
In order to ensure the reliable and stable work of the rectifier of UPS power supply, reducing its working temperature increase is a key technology. The combination of intelligent air cooling and self-cooling technology has the advantages of stronger environmental adaptability, long service life, reliability and stability.
With years of experience in industrial control and related industries, Huatai has a unique understanding of its industry application characteristics, special requirements, key points of fan use and easy problems in the use of fans. 120*120*38MM-7 UPS Power distribution box cooling fan Widely used in a variety of power supply industries, Unique dustproof design, professional customization, excellent quality to ensure the long-term stable operation of the fan, with good heat dissipation effect, large air volume, energy saving and environmental protection. And we will offer you the best after-sale service and timely delivery.
You are welcomed to come to our factory to buy the latest selling, 120*120*38 MM 7 Leaves Cooling Fan, low price, and high-qualityShort delivery time enjoy two years after sale warranty, Huatai Factory looks forward to cooperating with you.
Frame: Die-Casting aluminum painted black
Impeller: PBT (UL94V-0)
Motor: Shaded pole
Protection: Impedance protection or thermal protection
Dielectric Strength: 50/60Hz 1500VAC 1min (Between input terminal and frame)
Temperature Range: Operating temperature ball bearing-40C~70℃ (Non-condensing), Sleeve bearing-20℃~70C (Non-condensing)
Expected Life: Ball bearing 5000hrs at 40℃, Sleeve bearing 3000hrs at 40C
Safety Approval: CE, LVD, CCC, ROHS

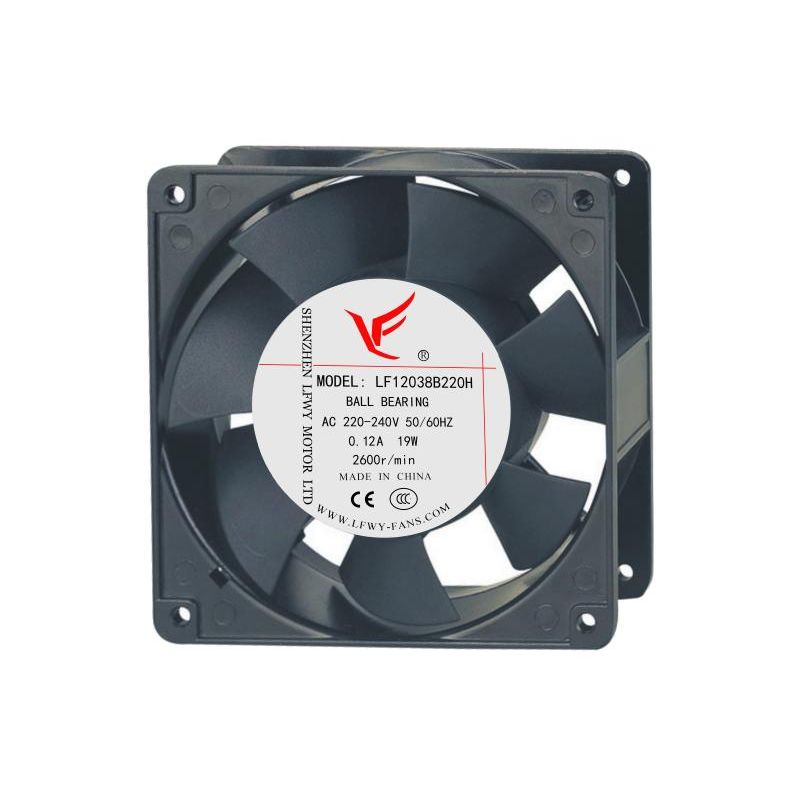

Model: LF12038B220H-7 Brand: LF Wind Leaf Materia: PBT Rated Voltage: 110V,220V Working Temperature: -10℃~+70℃ Blowing Rate: 74.39~88.37CFM Noise: 41.50~45.30dB-A Weight: 500.0g |
Size: 120x120x38mm Type: Ball bearing /Sleeve bearing Machine Frame Material: Alufer Power Rating: 15.00~21.00W Speed: 2600~3000RPM Wind Presssure: 0.23~0.28Inch-H₂ON Life Span: 30000~50000hrs Attestation: CCC, CE ,LVD, ROHS |
