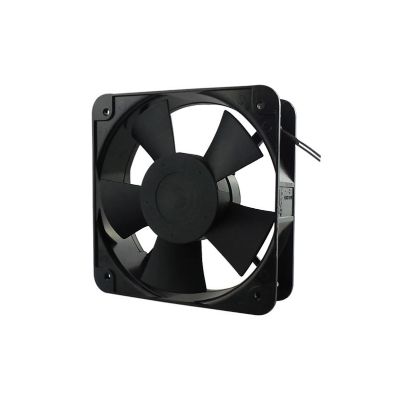

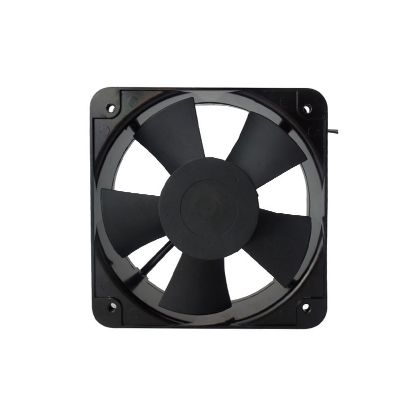

Dongguan Huatai factory is a reputable manufacturer of ac/dc cooling fans with over a decade of experience in producing 200*200 Silent High Air Volume Fans. These fans are extensively used in a range of industries, including testing, medical, power box bodies, display screens, and experimental instruments. Our fans offer good cooling performance, high air volume, quiet operation, low noise, energy conservation, and environmental protection, as well as low cost, high quality, and quick delivery. We can also provide OEM/OEM services and can customize the specifications of our customers.

Welcome you to our factory and choose and buy 200 * 200mm Silent High Air Volume Fan, bring you better products and services, let you use rest assured. We have strict product quality inspection, give you high quality products, guarantee the company high reputation, our fan enjoy two years of after-sales warranty, will provide you with the best after-sales service, huatai factory looking forward to cooperate with you.

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 24V.48V

· Power rating: 24-60W

·Air quantity: 373.23-559.45CFM

·Wind pressure: 0.38-0.821nch-H2O

·Working temperature: -10℃~+70℃

·Speed: 2500-4000RPM

·Noise: 53.40-65.40dB-A

·Life: 30000~70000hrs

·Weight: 1031.0g

·Attestation: UL, TUV, RoHS, CE

Material

Frame: Plastic(UL94V-0)

Impeller: Plastic(UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent(+)Red,(-) Black

Expected Life: Ball Bearing 70,000hrs(40*C)

Sleeve Bearing 30,000hrs(40C)

Temperature Range: Operating Temperature-10°C~70℃(Non-condensing)

Storage Temperature-40*C~70℃(Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM
