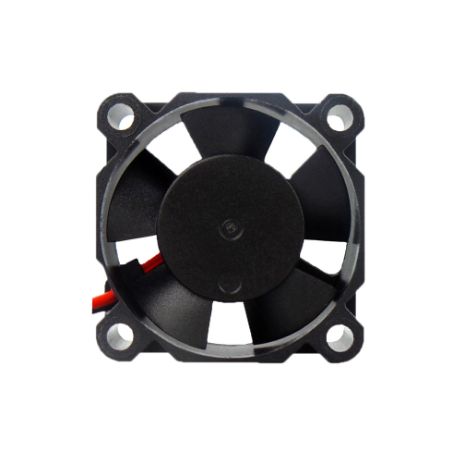

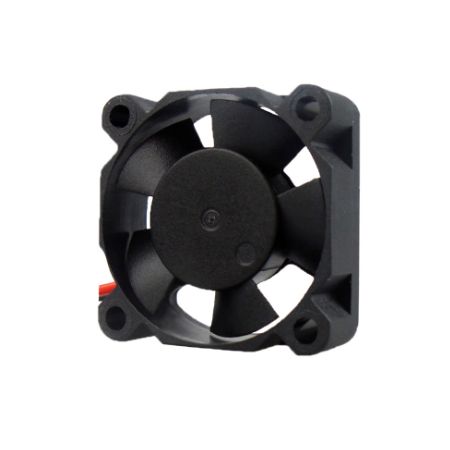

30 * 30mm Handheld Air Detector Fan

Huatai invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality 30 * 30mm Handheld Air Detector Fan. We are looking forward to working with you.

Dongguan Huatai factory is a professional production and research and development of ac / dc cooling fan manufacturers, we have more than ten years of experience in production, the 30 * 30mmHandheld air detector fan is widely used in all kinds of air purifier, ozone equipment and environmental protection industry. Our production of fans with good cooling performance, high air volume, super quiet, low noise, energy saving and environmental protection performance, low price, high quality, short delivery time, also can OEM / ODM, and meet the guest custom parameters.

Welcome you to our factory and choose and buy, 30 * 30mmHandheld air detector fan, bring you better products and services, let you use rest assured, we have strict product quality inspection, give you high quality products, guarantee the company high reputation, our fan enjoy two years of after-sales warranty, will provide you with the best after-sales service, huatai factory looking forward to cooperate with you.

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 5V, 12V

· Power rating: 0.50~1.44W

·Air quantity: 2.44~5.23CFM

·Life: 30000~70000hrs

·Working temperature: -10℃~+70℃

·Wind pressure: 0.08~0.24Inch-H2O

·Speed: 6000~12000RPM

·Noise: 22.30~34.10dB-A

·Weight: 8.0g

·Attestation: UL, TUV, RoHS, CE

Material:

Frame: Plastic (UL94V-0)

Impeller: Plastic (UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent (+) Red, (-) Black

Expected Life: Ball Bearing 70,000hrs (40*C)

Sleeve Bearing 30,000hrs (40C)

Temperature Range: Operating Temperature-10°C~70℃ (Non-condensing)

Storage Temperature-40*C~70℃ (Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM

Dimensions (Unit: MM)	PQ Curve (At Rated Voltage)
