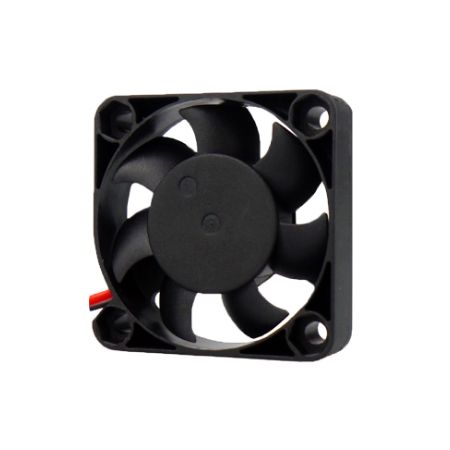

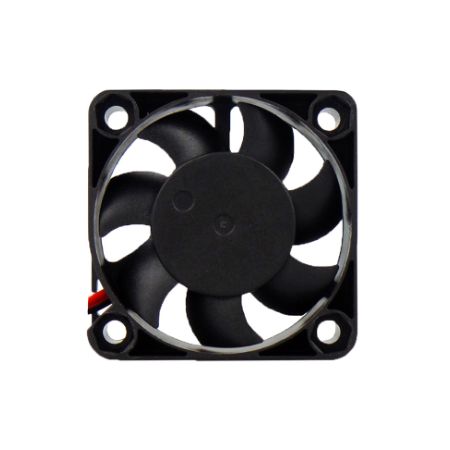

DC 40*40*10mm cooling fan

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 40 * 40mm Intelligent Cloud Mirror Fan, Huatai looks forward to cooperating with you.

Dongguan Huatai factory is a professional production and research and development of ac / dc cooling fan manufacturers, we have more than ten years of experience in production, the 40 * 40mm Intelligent cloud mirror fans are widely used in the automotive, electronics, and various small home appliances industries,our production of fans with good cooling performance, high air volume, super quiet, low noise, energy saving and environmental protection performance, low price, high quality, short delivery time, also can OEM / ODM, and meet the guest custom parameters.

Welcome you to our factory and choose and buy, 40 * 40mm Intelligent cloud mirror fans, bring you better products and services, let you use rest assured, we have strict product quality inspection, give you high quality products, guarantee the company high reputation, our fan enjoy two years of after-sales warranty, will provide you with the best after-sales service, huatai factory looking forward to cooperate with you

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 5V,12V

· Power rating: 0.40~1.8W

·Air quantity: 4.10~6.96CFM

·Wind pressure: 0.06~0.16Inch-H2O

·Life: 30000~70000hrs

·Working temperature: -10℃~+70℃

·Weight: 8.0g

·Speed: 6000~12000RPM

·Noise: 22.40~34.0dB-A

·Attestation: UL, TUV, RoHS, CE

Material:

Frame: Plastic (UL94V-0)

Impeller: Plastic (UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent (+) Red, (-) Black

Expected Life: Ball Bearing 70,000hrs (40*C)

Sleeve Bearing 30,000hrs(40C)

Temperature Range: Operating Temperature-10°C~70℃ (Non-condensing)

Storage Temperature-40*C~70℃ (Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM

Dimensions (Unit:MM)	PQ Curve (At Rated Voltage)

DC 40*40*20mm cooling fan

·Type: double Ball bearing /sleeve bearing

·Wind leaf material: PBT

·rated voltage: 5V,12V

· Power rating: 0.50~2.0W

·Air quantity: 4.26-11.250CFM

·Wind pressure: 0.07~0.44Inch-H2O

·Working temperature: -10℃~+70℃

·Weight: 24.0g

·Speed: 4000~10000RPM

·Noise: 20.70~35.5dB-A

·Life: 30000~70000hrs

·Attestation: UL, TUV, RoHS, CE

Material:

Frame: Plastic (UL94V-0)

Impeller: Plastic (UL94V-0)

Lead Wire: UL1571AWG#28 or Equivalent (+) Red, (-) Black

Expected Life: Ball Bearing 70,000hrs (40*C)

Sleeve Bearing 30,000hrs (40C)

Temperature Range: Operating Temperature-10°C~70℃ (Non-condensing)

Storage Temperature-40*C~70℃ (Non-condensing)

Safety Standards: UL/TUV/ROHS/CE

DC Fan Specials: RD.FG, IP54, PWM

Dimensions (Unit:MM)	PQ Curve (At Rated Voltage)
